Tipping Bucket Rain Gauge
【Product introduction】Tipping Bucket Rain Gauge is a new type of tipping bucket rain measuring instrument, which mainly consists of sensors and display recording parts.
Model：YL1
Brand：fengtu
Get a Free QuoteProduct details
1. Tipping Bucket Rain Gauge technical indicators
Tipping Bucket Rain Gauge is a new type of tipping bucket rain measuring instrument, which mainly consists of sensors and display recording parts.
1. Power supply: DC12V
2. Power consumption: 0.02W
3. Working environment: 0~50℃
4. Communication interface: RS485
5. Working current: 2mA DC12V
6. Minimum data interval: 0.5S
2. Tipping Bucket Rain Gauge parameters
| Rain gauge barrel diameter | Φ200mm |
| working temperature | 0～50℃ |
| Working humidity | <95%(no condensation) |
| error | ≤±2% |
| resolution | 0.2mm |
| Rain intensity range | 0mm～4mm/min, the maximum rain intensity allowed is 8mm/min |
| Heavy rain intensity range | 0～10mm/min, the maximum rain intensity allowed is 15mm/min |
| Output mode | Modbus485 |

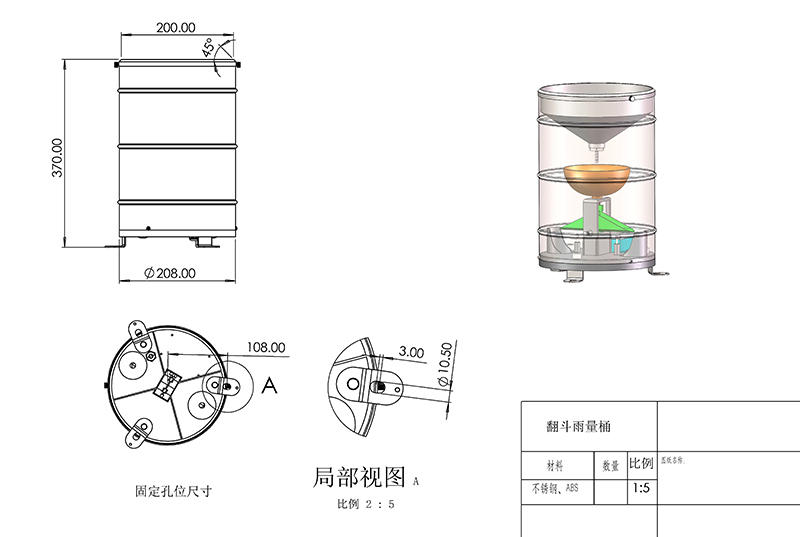

3. Tipping Bucket Rain Gauge Product Dimensions
