Ultrasonic Snow Depth Sensor

1. Ultrasonic Snow Depth Sensor product introduction

Ultrasonic Snow Depth Sensor is an ultrasonic sensor for accurate, continuous and non-contact recording of snow depth, which is accurately measured by ultrasonic technology.Ultrasonic Snow Depth Sensor is a sensor that uses ultrasonic technology to detect distance on the snow surface. The sensor adopts an integrated capacitive electrostatic transducer probe design, which has high sensitivity, strong anti-interference ability and high precision.

2. Ultrasonic Snow Depth Sensor technical indicators

Power supply: DC12V

Working environment: -40-60℃, humidity ≤100%, no condensation

Communication interface: RS485

Working current: 18mA DC12V

Minimum data interval: 0.2S

Shell material: aluminum alloy

Measuring range: 0-2000mm

Measurement resolution: 1mm

Accuracy: 1mm±0.2%

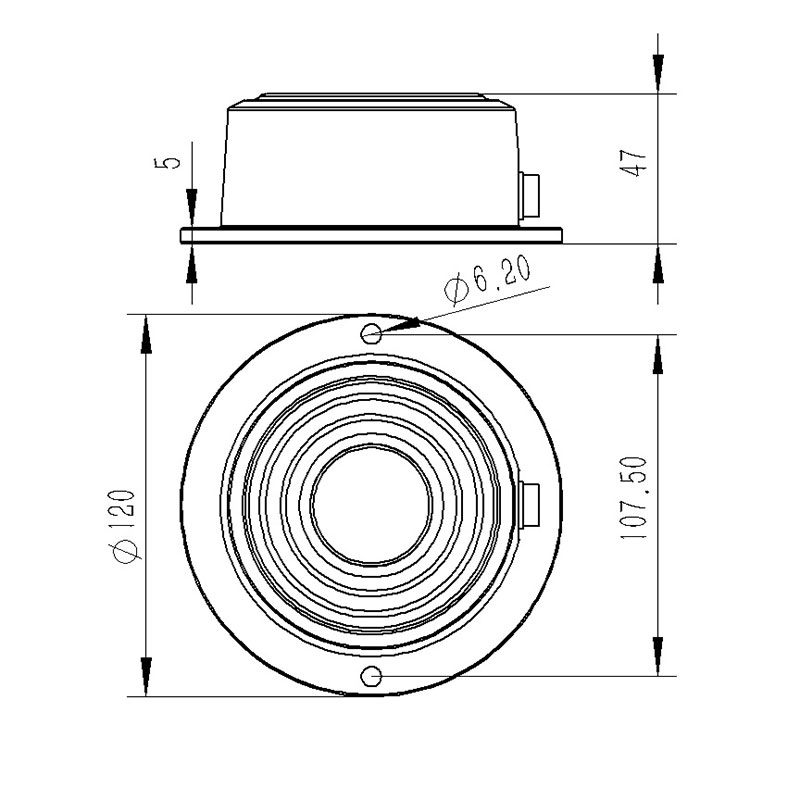

3. Ultrasonic Snow Depth Sensor product size chart

4. Use of Ultrasonic Snow Depth Sensor products

The equipment installation location should be in an open area

The equipment installation cross arm should be at least 1M

There should be no obstructions above the device

The distance between the equipment and the ground plane should be within 20cm-200cm. To ensure measurement accuracy, the recommended distance is 100cm.

The equipment installation bracket should be kept horizontal. It is best to make the reflective ground of the sensor horizontal. The reflection point should be within a radius of 1 meter to avoid interference from weeds.
