Meteorological Monitoring System: Precision, Flexibility, and Endless Applications

The Meteorological Monitoring System is an important tool that can conduct all-weather on-site monitoring of various meteorological elements.

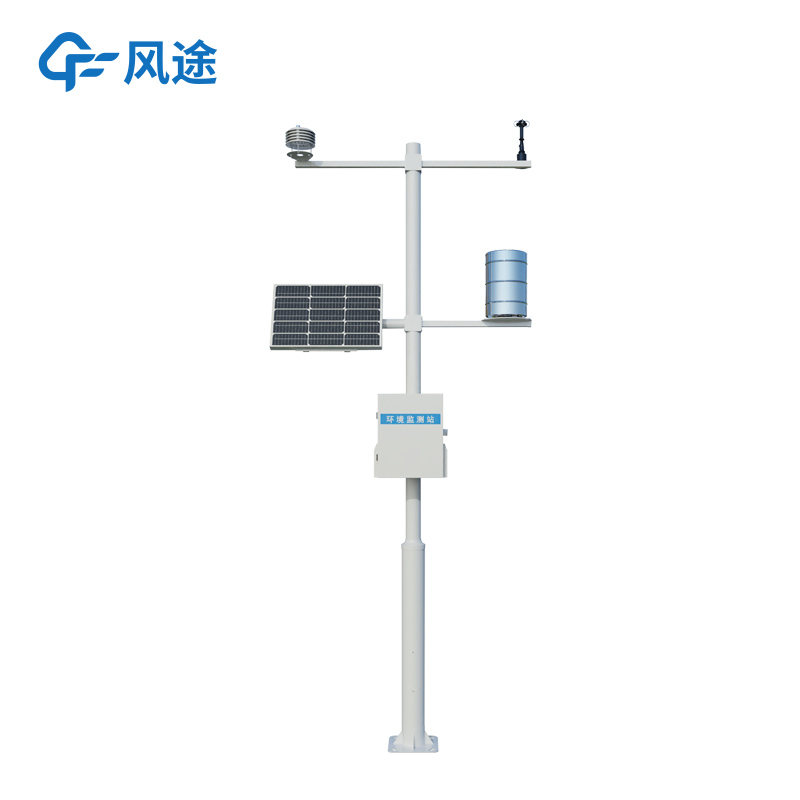

This system is mainly composed of a monitoring center, a communication platform, remote monitoring equipment, and on-site measuring instruments. The monitoring center is like the human brain. In terms of hardware, it includes servers, clients, and printers. For software, it has operating system software, database software, and automatic meteorological monitoring system software. It also has a fixed IP address. The meteorological information system software is designed with a B/S structure, which is convenient for remote browsing. Equipped with a solar power supply unit, the average operating current is less than 10mA, which is not only energy-saving but also reduces the cost of peripheral equipment. The on-site measuring instruments include various sensors such as wind direction, wind speed, rainfall, air temperature, relative humidity, and air pressure, and are configured according to actual needs to accurately measure meteorological changes.

This system has a wide range of application scenarios, covering multiple industries such as meteorological monitoring, environmental protection, agricultural and forestry production, hydrological research, the military field, warehouse management, and scientific research. It supports the access of basic sensors such as air temperature, relative air humidity, atmospheric pressure, wind speed, wind direction, rainfall, and total radiation. Other types of sensors can also be flexibly selected according to actual needs.

The power supply system is flexibly designed, supporting both AC and DC power supplies, and can also be equipped with solar batteries to meet the power supply needs in different environments. The system has excellent environmental adaptability and can operate stably under extreme conditions. The working temperature range is from -20°C to 70°C, and the humidity environment can reach 100%. If there are special requirements, the minimum working temperature can also be extended to -40°C through customization. The system is equipped with Chinese operation software, which has a simple interface and is easy to operate. A detailed Chinese user manual is provided to facilitate users to quickly master the usage method.
