Online Salinometer

1.Online Salinometer product introduction

Online Salinometer is an analyzer that measures the electrical conductivity of a solution; the higher the concentration of ions in the solution, the higher the conductivity.ZS7 Online Salinometer is an instrument that can monitor the conductivity of water quality online.It integrates water quality conductivity sensor and measurement module communication storage, and can quickly and accurately record key parameters in the water body.At the same time, the instrument supports extended water quality multi-parameter sensors, including but not limited to conductivity, pH, dissolved oxygen (DO), turbidity, temperature, ammonia nitrogen, etc., which can be combined and configured according to different needs and applications, and record and store history Monitoring data and alarm history records support historical data export.xlsx.The RS485 interface supports the MODBUS-RTU communication protocol to facilitate users to freely communicate with PLC, DCS, configuration software, DTU and other equipment to connect and transmit data.

2.Application fields of Online Salinometer

Online multi-parameter water quality detectors are widely used in the monitoring and control of various water bodies, including but not limited to the following fields:

1.Water plant: used to monitor the pH value, dissolved oxygen, turbidity and other parameters of tap water to ensure the safety and hygiene of tap water.

2.Groundwater monitoring: used to monitor the pH value, conductivity, temperature and other parameters of groundwater to detect and solve water quality problems in a timely manner.

3.River and lake monitoring: used to monitor the water quality conditions of rivers and lakes, such as dissolved oxygen, turbidity, ammonia nitrogen and other parameters, so as to take timely pollution control measures.

4.Marine monitoring: used to monitor the water quality conditions of the ocean, such as salinity, dissolved oxygen, temperature and other parameters, so as to detect and control marine pollution in a timely manner.

5.Sewage treatment: used to monitor the water quality parameters of sewage, such as pH value, COD, ammonia nitrogen, etc., in order to control and adjust the sewage treatment process.

6.Industrial production: used to monitor water quality conditions during industrial production, such as pH, conductivity, dissolved oxygen and other parameters, so as to adjust the process in a timely manner and ensure product quality.

7.Scientific research: used for water quality monitoring in the field of scientific research, such as lake eutrophication, climate change, etc.

3.Technical features of Online Salinometer

1.High reliability: suitable for long-term work in outdoor environments, with stable measurement and strong anti-interference ability.

2.Flexible and portable: Each probe can be freely combined, replaced independently, plug and play.

3.Scalability: A variety of sensors can be freely combined.

4.Various applications: on-site rapid measurement, emergency monitoring, or long-term online monitoring of groundwater, river water, lake water sources, and urban pipe network water.

5.Tough shell: ABS+PC material, anti-corrosion, can work continuously and normally for a long time.

6.Compact structure: can be installed in smaller places.

7.Communication connection: RS485 expansion interface, the master/slave interface is isolated and can communicate independently.

4.Technical parameters of Online Salinometer

5.Online Salinometer product size

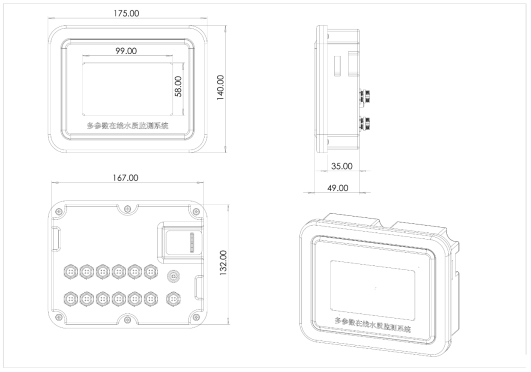

Dimensional drawing

6.Online Salinometer sensor configuration (optional)

PH	测量原理：电化学（盐桥） 信号方式：RS485（MODBUS-RTU） 测量范围：0~14（PH） 分辨率 ：0.01 测量精度：± 0.1PH ± 0.1℃ 线缆长度：标配5米 测量环境：温度0~50℃(不结冰)，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
ORP	测量原理：电化学（盐桥） 信号方式：RS485（MODBUS-RTU） 测量范围：-1500~+1500（mV） 分辨率 ：1mV 测量精度：± 6 mV 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
COD	测量原理：UV 254 吸收法 双光源测量 信号方式：RS485（MODBUS-RTU） 测量范围：0~200mg/L 0~500mg/L 分辨率 ：0.1mg/L 测量精度：± 5% ±0.3℃ 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹自清洁功能：带有自动清洁器，可防止生物附着，避免光窗污染，以保证长期监测依然具有稳定性；可设置自动清洁时间及清洁次数，功耗0.7W
电导率EC	测量原理：接触式电极法 信号方式：RS485（MODBUS-RTU） 测量范围：0~5000 us/cm 分辨率 ：1 us/cm 测量精度：± 1.5% ±0.1℃ 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
溶解氧DO	测量原理：荧光寿命法 信号方式：RS485（MODBUS-RTU） 测量范围：0~20mg/L 分辨率 ：0.01mg/L 测量精度：± 2% ±0.3℃ 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
悬浮物SS	测量原理：散射光法 信号方式：RS485（MODBUS-RTU） 测量范围：0~2000mg/L 分辨率 ：0.1mg/L 测量精度：± 5%（取决于污泥同质性） 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
浊度TU	测量原理：散射光法 信号方式：RS485（MODBUS-RTU） 测量范围：0~40NTU 0~1000NTU 0~3000NTU 分辨率 ：0.1NTU 测量精度：± 1% ±0.3℃ 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
氨氮	测量原理：离子选择电极法 信号方式：RS485（MODBUS-RTU） 测量量程：0-100mg/l 分辨率 ：0.01mg/l 测量精度：±1mg 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹
叶绿素	测量原理：荧光法 信号方式：RS485（MODBUS-RTU） 测量量程：0-400ug/L 分辨率 ：0.01ug/L 测量精度：R2>0.999 线缆长度：标配5米 测量环境：温度0~50℃(不结冰) ，<0.2Mpa 防水等级：IP68 安装方式：浸入式安装，NPT3/4螺纹自清洁功能：带有自动清洁器，可防止生物附着，避免光窗污染，以保证长期监测依然具有稳定性；可设置自动清洁时间及清洁次数，功耗0.7W
