online Dissolved Oxygen Meter

1. Product introduction of online Dissolved Oxygen Meter

online Dissolved Oxygen Meter continuously monitors oxygen concentrations and provides real-time measurements of dissolved oxygen concentrations for industrial processes.ZS8 online Dissolved Oxygen Meter is an instrument capable of online monitoring of dissolved oxygen.It integrates water quality dissolved oxygen sensor and measurement module communication storage, and can quickly and accurately record key parameters in the water body.At the same time, the instrument supports extended water quality multi-parameter sensors, including but not limited to dissolved oxygen (DO), pH value, conductivity, turbidity, temperature, ammonia nitrogen, etc., which can be combined and configured according to different needs and applications, and record and store history Monitoring data and alarm history records support historical data export.xlsx.The RS485 interface supports the MODBUS-RTU communication protocol to facilitate users to freely communicate with PLC, DCS, configuration software, DTU and other equipment to connect and transmit data.

2.Application fields of online Dissolved Oxygen Meter

Online multi-parameter water quality detectors are widely used in the monitoring and control of various water bodies, including but not limited to the following fields:

1.Water plant: used to monitor the pH value, dissolved oxygen, turbidity and other parameters of tap water to ensure the safety and hygiene of tap water.

2.Groundwater monitoring: used to monitor the pH value, conductivity, temperature and other parameters of groundwater to detect and solve water quality problems in a timely manner.

3.River and lake monitoring: used to monitor the water quality conditions of rivers and lakes, such as dissolved oxygen, turbidity, ammonia nitrogen and other parameters, so as to take timely pollution control measures.

4.Marine monitoring: used to monitor the water quality conditions of the ocean, such as salinity, dissolved oxygen, temperature and other parameters, so as to detect and control marine pollution in a timely manner.

5.Sewage treatment: used to monitor the water quality parameters of sewage, such as pH value, COD, ammonia nitrogen, etc., in order to control and regulate the sewage treatment process.

6.Industrial production: Used to monitor water quality conditions during industrial production, such as pH, conductivity, dissolved oxygen and other parameters, so as to adjust the process in a timely manner and ensure product quality.

7.Scientific research: used for water quality monitoring in the field of scientific research, such as lake eutrophication, climate change, etc.

3.Technical features of online Dissolved Oxygen Meter

1.High reliability: suitable for long-term work in outdoor environments, with stable measurement and strong anti-interference ability.

2.Flexible and portable: Each probe can be freely combined, replaced independently, plug and play.

3.Scalability: A variety of sensors can be freely combined.

4.Various applications: on-site rapid measurement, emergency monitoring, or long-term online monitoring of groundwater, river water, lake water sources, and urban pipe network water.

5.Tough shell: ABS+PC material, anti-corrosion, can work continuously and normally for a long time.

6.Compact structure: can be installed in smaller places.

7.Communication connection: RS485 expansion interface, the master/slave interface is isolated and can communicate independently.

4.Technical parameters of online Dissolved Oxygen Meter

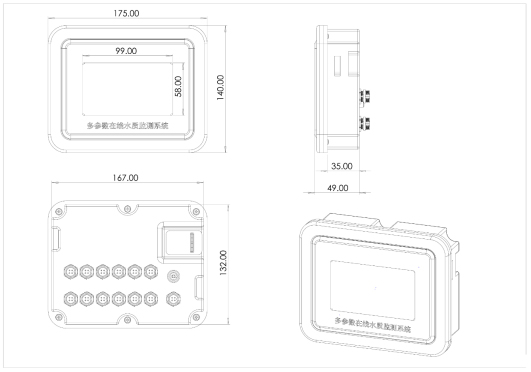

5.Online Dissolved Oxygen Meter product size

Dimensional drawing

6.Online Dissolved Oxygen Meter sensor configuration (optional)

PH	Measurement principle: Electrochemical (salt bridge) Signal mode: RS485 (MODBUS-RTU) Measurement range: 0~14 (PH) Resolution: 0.01 Measurement accuracy: ± 0.1PH ± 0.1℃ Cable length: 5 meters standard Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
ORP	Measurement principle: electrochemical (salt bridge) Signal mode: RS485 (MODBUS-RTU) Measurement range: -1500~+1500 (mV) Resolution: 1mV Measurement accuracy: ± 6 mV Cable length: 5 meters standard Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
COD	Measurement principle: UV 254 absorption method dual light source measurement Signal mode: RS485 (MODBUS-RTU) Measurement range: 0~200mg/L 0~500mg/L Resolution: 0.1mg/L Measurement accuracy: ± 5% ±0.3℃ Cable Length: Standard 5 meters Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof grade: IP68 Installation method: immersed installation, NPT3/4 thread Self-cleaning function: with automatic cleaner to prevent Biological adhesion to avoid light window contamination to ensure long-term monitoring is still stable; automatic cleaning time and cleaning times can be set, power consumption is 0.7W
Conductivity EC	Measurement principle: Contact electrode method Signal mode: RS485 (MODBUS-RTU) Measurement range: 0~5000 us/cm Resolution: 1 us/cm Measurement accuracy: ± 1.5% ±0.1℃ Cable length: Standard 5 meter measurement Environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
Dissolved oxygen DO	Measurement principle: Fluorescence lifetime method Signal mode: RS485 (MODBUS-RTU) Measurement range: 0~20mg/L Resolution: 0.01mg/L Measurement accuracy: ± 2% ±0.3℃ Cable length: Standard 5 meters Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
Suspended solids SS	Measurement principle: scattered light method Signal mode: RS485 (MODBUS-RTU) Measuring range: 0~2000mg/L Resolution: 0.1mg/L Measuring accuracy: ± 5% (depends on sludge homogeneity) Cable length: 5 meters standard Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
Turbidity TU	Measurement principle: scattered light method Signal mode: RS485 (MODBUS-RTU) Measuring range: 0~40NTU 0~1000NTU 0~3000NTU Resolution: 0.1NTU Measurement accuracy: ± 1% ±0.3℃ Cable length: 5 meters standard Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
Ammonia nitrogen	Measuring principle: ion selective electrode method Signal mode: RS485 (MODBUS-RTU) Measurement range: 0-100mg/l Resolution: 0.01mg/l Measurement accuracy: ±1mg Cable length: 5 meters standard Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof level: IP68 Installation method: immersed installation, NPT3/4 thread
Chlorophyll	Measurement principle: Fluorescence method Signal mode: RS485 (MODBUS-RTU) Measurement range: 0-400ug/L Resolution: 0.01ug/L Measurement accuracy: R2>0.999 Cable length: 5 meters standard Measurement environment: Temperature 0~50℃ (non-freezing), <0.2Mpa Waterproof grade: IP68 Installation method: immersed installation, NPT3/4 thread Self-cleaning function: with automatic cleaner to prevent biological adhesion and avoid light windows contamination to ensure long-term monitoring is still stable; the automatic cleaning time and cleaning times can be set, and the power consumption is 0.7W
