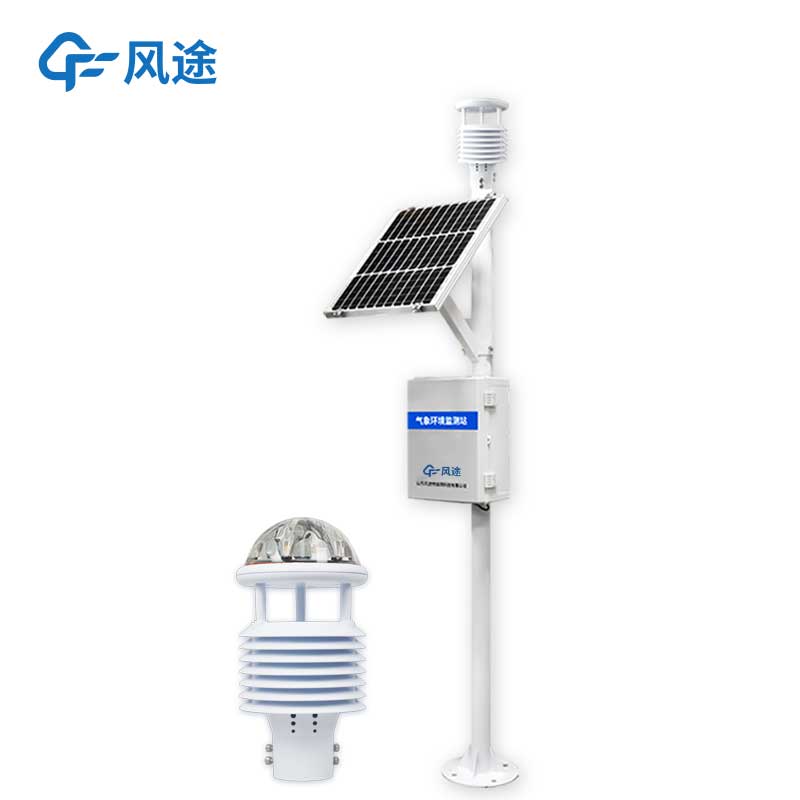

FT-CQX5 Ultrasonic Weather Station: Five-Element Integrated Meteorological Monitoring System

The FT-CQX5 Ultrasonic Weather Station adopts a five-element integrated sensor, combining the monitoring of wind speed, wind direction, temperature, humidity, air pressure and other meteorological elements into one, achieving 24-hour continuous online monitoring of outdoor meteorological parameters.

This highly integrated design allows the device to be commissioning-free and quickly deployed, greatly improving deployment efficiency.

Compared with traditional ultrasonic weather stations, this device overcomes the need for high-precision timers and avoids measurement inaccuracies caused by sensor startup delays, demodulation circuit delays, and temperature changes.

Wind speed measurement range is 0-60m/s with an accuracy of ±0.1m/s; wind direction measurement range is 0-360° with an accuracy of ±2°; air temperature measurement range is -40-80℃ with an accuracy of ±0.3℃; air humidity measurement range is 0-100%RH with an accuracy of ±3%RH; atmospheric pressure measurement range is 300-1100Hpa with an accuracy of ±0.25%.

These precise measurement data provide a reliable basis for meteorological analysis.

The device uses a hidden ultrasonic probe in the top cover, effectively avoiding interference from rain and snow accumulation and natural wind obstruction. The monitoring principle is to emit continuous frequency-variable ultrasonic signals and detect wind speed and direction by measuring relative phases.

The FT-CQX5 Weather Station is suitable for multiple fields including meteorology, agriculture, forestry, environmental protection, oceanography, airports, ports, scientific research, and campus education.

The device supports multiple data transmission methods, including GPRS, Bluetooth, 485 to USB and other transmission methods. The data upload interval can be flexibly adjusted from 1 minute to 1000 minutes to meet data collection needs in different scenarios.

The supporting cloud platform supports real-time data display and historical data analysis, allowing users to directly observe through mobile phones and PC browsers without additional software installation.

It also supports SMS alarm and threshold setting functions, allowing users to promptly grasp meteorological changes.

The device is equipped with a two-meter carbon steel bracket, and the top can directly socket the sensor without a flange, making installation simple and the structure stable.
